Description

OrthoScan Mobile DI Mini C-Arm is a new c-arm that combines portability and ease of movement with crisp clear images and good functionality. This new 2018 model OthoScan c-arm is capable of digital x-ray imaging of shoulder to fingertip and below the hip to the toes. It is also capable of fluoroscopy – the motion can provide additional information for diagnostics, needle guided injections, and closed reductions. It can be stored in a custom suitcase with wheels and handle which is perfect for moving from one location to another. It can also be attached to an optional accessory cart for ease of movement within your facility.
OrthoScan Mobile DI’s flat detector technology makes more efficient use of the available radiation. Flat detectors read more of the individual x-rays, so in turn, there is less waste. The Mobile DI provides immediate viewing with connectivity to PACS systems using DICOM (the gold standard for transferring images). The images (live and static) can also be viewed via “live” video feed to your on-site or off-site medical support.
Benefits:
Additional Procedures
Motion studies
Weight-bearing views
Fluoroscopic needle guidance
Arthrography
Joint stability tests
Increased reimbursement
Portable & Lightweight
Ease of movement between exam rooms
Ease of moving from location to location
Mobile DI weights only 35lbs

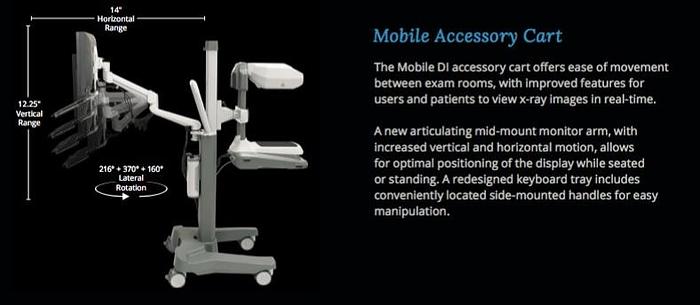

Mobile accessory cart
Custom covers and drapes
Connectivity
No lead line rooms required
DICOM included
PACS
EMR Image link
Wireless connectivity
Reliability
Solid state detector more reliable than glass tube ll
No power supply for receptor
No camera – auto-calibrating, self-adjusting image reader
Fewer components – less chance of part failure
OrthoScan Mobile DI provides a unique solution for digital and fluoroscopic imaging in a portable mini c-arm designed for the unique imaging requirements of the Athletic Department. Mobile DI weighs approximately 35 pounds, is 25” in height, and will fit on a desktop or table. It may be attached on an accessory cart providing ease of movement between patient rooms, and allowing additional positioning capabilities for all necessary extremity imaging including, but not limited to, shoulder, elbow, hand, weight-bearing knee, and weight-bearing foot and ankle views. A wireless tablet display is available for portability for the various demands of athletic teams. The imaging device can be moved between venues in a protective mobile carrying case that is approximately 29”x32”x17”. The unit operates on a standard 110-120VAC, 60HZ outlet.
OrthoScan Mobile DI utilizes state of the art imaging incorporating a CMOS flat detector for high definition digital x-ray & fluoroscopy. The Mobile DI flat detector resolution is 2k X 1.5k with a DQE of 70%. Boost mode is available for larger anatomy, allowing a kVp range of 40-78 and a mA range of .040-.160.
Below is a brief breakdown of the technology that makes Mobile DI the best and sole solution for the athletic department. The specifications listed below are unique to OrthoScan's Mobile DI:
  System must utilize a flat detector as the image receptor
  System must utilize a flat detector as the image receptor
  Resolution must be at least 2k x 1.5k
  Resolution must be at least 2k x 1.5k
  DQE at least 70%
  DQE at least 70%
  Has wired foot switch and hand switch option
  Has wired foot switch and hand switch option
  X-ray tube output range of 40μA - 160μA
  X-ray tube output range of 40μA - 160μA
  Mini c-arm must weigh less than 50 pounds
  Mini c-arm must weigh less than 50 pounds
  Must include a Wilson (or equal) mobile carry case. Dimensions: 29” x 23” x 17”
  Must include a Wilson (or equal) mobile carry case. Dimensions: 29” x 23” x 17”
  Mini c-arm must be no taller than 25” with a width able to fit on a desktop table
  Mini c-arm must be no taller than 25” with a width able to fit on a desktop table
  A tablet display with wireless connection capability is available
  A tablet display with wireless connection capability is available
  Must operate on 110-120 VAC, 15A; 60 Hz
  Must operate on 110-120 VAC, 15A; 60 Hz

Caractéristiques

ConditionNouvelle
KVp range40kVp – 78kVp
